Note:

I am in no way associated with PostFossil, the Youless' manufacturer, just an enthusiastic user of the device.





The Youless LS120 Enegy Monitor is a tiny piece of hardware to collect logging information from a "slimme meter" (smart meter) through its P1 port.
It connects to your local ethernet network, and allows you to access the collected data from a cell phone (using Wifi) or computer.

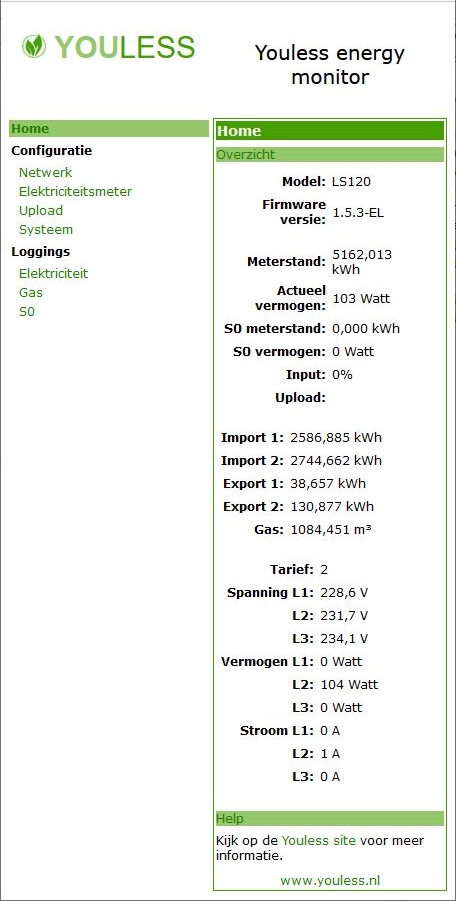

Once connected, you can easily get a summary by browsing to http://youless/

The device comes with some standard apps, and spreadsheets with macros to collect the data over a longer period than the device's 1 year limt; however, what I really like about it, is the ability to get at the raw data and present it any way I want.

The Youless "API" is well documented by TD-er.

• A very basic summary can be displayed using wget:
  wget http://youless/a -q -O -

5162,059 kWh
203 Watt
0%

0,000 kWh
0 Watt
0
• Youless.exe is my first attempt at reading basic Youless info with C#.
  You may want to add S0-related values (for additional solar panels kWh meter, if available) and/or translate the output descriptions.
• Youless.bat will give you identical results:



  Youless model                :	LS120
  Youless firmware             :	1.5.3-EL
  Youless MAC adres            :	72-B8-A0-74-23-AF
  Youless IP adres             :	192.168.1.52

  Tijdstip                     :	2023-03-25 11:40

  Vermogen                     :	-971 W
  P1 afname hoog tarief        :	2588.015 kWh
  P1 afname laag tarief        :	2745.512 kWh
  P1 teruglevering hoog tarief :	41.476 kWh
  P1 teruglevering laag tarief :	130.877 kWh
  Netto totaal verbruik        :	5161.174 kWh

  Gas verbruik                 :	1084.677 m3



• YoulessBar.bat displays power consumption or feed-in in a horizontal bar.
